15) Completed the Build and 3000 mile test ride

From This...

To This!!!

And it only took 3 years with a miner investment in dollars and a little more in mental equity.

On September 28 2013 I officially started my project. Here is the link to my first post on this project,

http://rbwii.blogspot.com/2013/09/project-1-motorcycle.html

The project changed a 1994 Honda Goldwing GL1500 to what I'm calling a GLglide. As it may be a Honda Goldwing frame and engine but most everything else is Harley Davidson Road Glide

One of the final major evolution was an engine overhaul. I removed the engine and took it to the local Honda dealer to be rebuilt.  The engine had a rattle internal to it and the heads did not pass the leak down test. So as the engine had 116,000 miles on it I was hoping for a new engine when I got it back. The Honda shop recommended I have the heads rebuilt and since the pistons past the leak down they did not recommend I split the engine case to inspect internally for the rattle.  So I crossed my fingers and this is what I got back;

So I had to replace the engine.  I found a 1999 GL1500 engine in Florida with only 50,000 miles on it. Compared to the 116,000 on my engine this look good. But it was a short block, but since I just had the heads on my engine rebuilt I went for it.

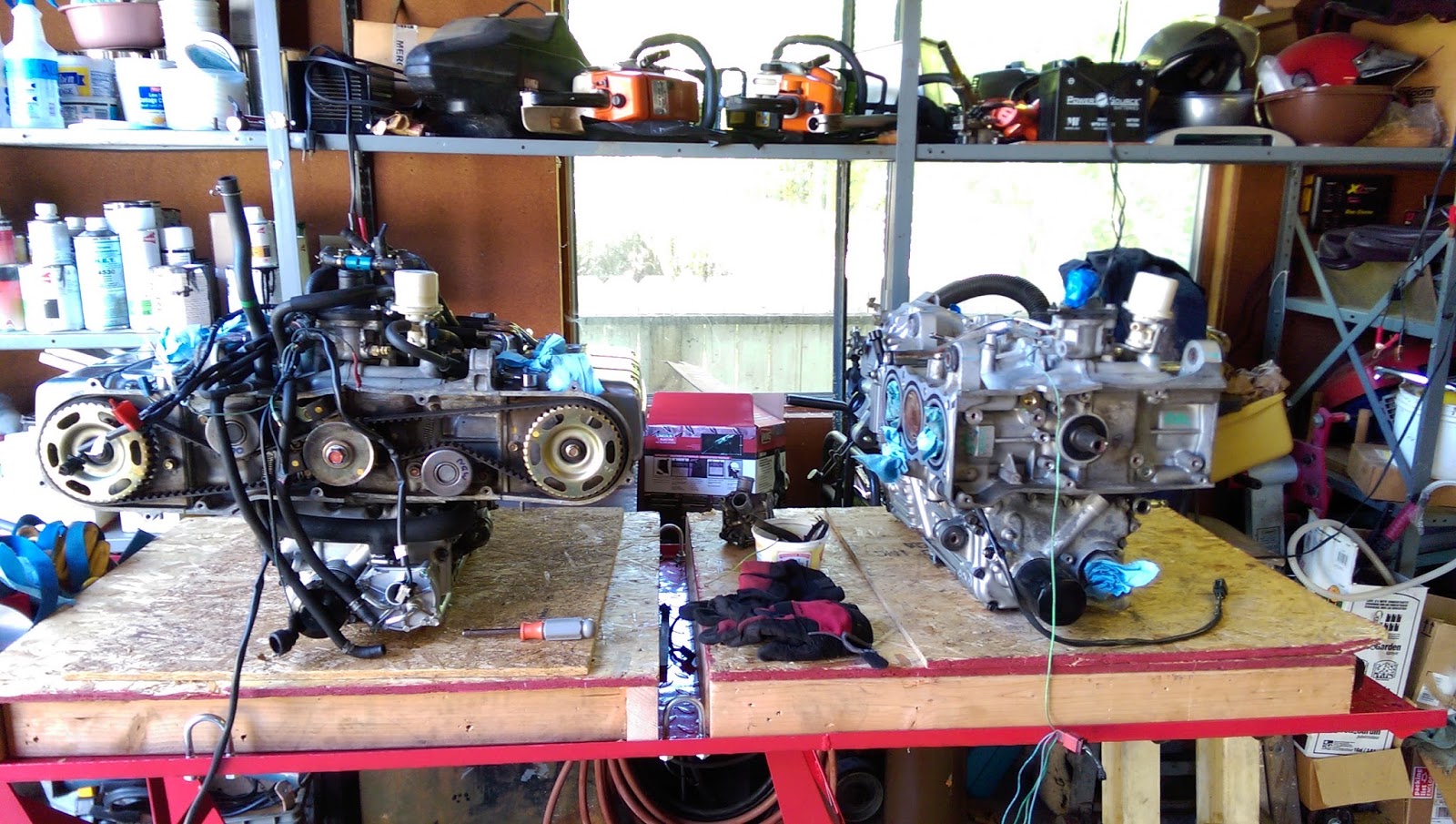

I received the short block and started the parts swap and found other issues the Honda shop left for me.  Water in the oil and a stripped thread in the head which I had to insert a helicoil. Not Happy!

But with the great paint job our friend Jim Hawkinson did I am Very Happy!

 So with the new engine and a great paint job I had less than a week to put the bike together before I set out with my Brother for the road trip we had planned. A 3000 mile trip around the western states. First to Bend Oregon and on to Twin Falls Idaho to visit our Uncle. To Provo Utah and Zion National Park. A night in Vegas and to my Brothers home in Paso Robles before I headed home to Bayside.

A Great trip and the motorcycle made it with minimum problems.  So now I need a new project..

I'm calling this one DONE!

14) Looking like a Motorcycle

I have been learning about making side panels out of plastics, how to apply bondo to plastics, and if you rush it can really look like crap.

I initially was thinking I could make the side panels from sheet metal.

 This was looking kind of OK but my skill level had a lot to be desired. Not to mention the amount of bondo going to be required to cover up my learning curve.
 So I started thinking about fiberglass. Watched tons of videos of various DIY guys at different skill levels and how easy they all made it look and how messy as well. In my research I came across this one guy with a flat sheet of plastic, some simple shears, and a heat gun making very complex shapes. WHAT! Thermoform ABS plastic looked like some pretty cool stuff. I ordered a sheet and found out how easy it was to work with, so decided to go plastic. As I discovered the Honda Goldwing plastic was also made of ABS and with heat it to could be shaped, so what can I use to make my life easier?



So with a jig saw, shears and patients as well as some heat the Honda panels took on a new shape.


The next thing I discovered is plastic welding or fusing and how simple it was. First I found a little acetone will instantly fuse two pieces of thermoform plastic together.








Than I found PlastiFix. This stuff is very cool but the fumes are strong and toxic. You can bond any two pieces of plastic or fill holes, repair cracks or just cover up any mistakes or screw ups. this is good stuff.

So the bike is really coming together. The next big thing is to totally take it apart, have the engine rebuilt to make it fresh and decide if I will try my hand at painting. My initial bondoing and prime is kinda of OK. But!

13) Some Progress and a bunch of Firsts

So things have been progressing slowly but forward;

The bike has really started to come together; Added cooling water (only small leaks), battery charged up (going to need a new one), oil level good (needs to be changed), and gas in the tank.

NO LEAKS!

   It was time to see if it will start(?)

And than on the road and up the street

The seat is now upholstered

Making progress on the side panels

And planning on the final look

Still need to finish all the side panels, have the component powered coated and painting. Than go to DMV to get it road legal.  Still plan to have the engine overhauled to make the bike reliable.

Planning a trip to with my brothers in June of 2016 so I have a target for completion.

12) The Project is still in Progress, Really!

I know it has been awhile.

Yes the Project has continued and has progressed quite far.

The wiring, which I focused on in my last update, (yes I know September last year), is basically done. I haven't blown any fuses recently, so I think I found all (hopefully all) my mistakes. All the lights work, radio works, all indications light up, and the blinkers blink. The motor turns over and I recently wired the spark plugs and had spark at all 6 plugs. So I still need to add coolant and complete installation of fuel lines from the tank. And YES I need to put fuel in the tank. I have been holding off because once I add gas to the tank repairs to it become more difficult. Yes I know until I add fuel I will not know if there is a problem with leaks. And I really do not want to use water as it is very hard insure it is all out.

Well what have I done?

I made a luggage rack
for the back of the bike.

  I manufactured supports
for the mufflers

And I mounted the saddle bags

You may be asking what have I been doing with the rest of my time.

Well I started riding my bicycle,  So far I have completed three organized rides. One in Solvang (52 miles), one in Chico (62 miles), and the local Tour of the Unknown Coast (62 miles) which I road with my biking partner Doug. The training for these has been keeping me busy. We ride about 90 miles a week just to try to stay in shape and keep our aging bodies moving.

Solvang 1/2 Century March 2015

Humboldt County TUC Metric Century
May 2015

Chico Wildflower Metric Century April 2015

So now I need to get back to working on the other bike the motorcycle. In the next few weeks I hope to be adding coolant, finally adding fuel to the tank and for the first time starting it up (my fingers are crossed). Once I get it running I will take it to the upholstery shop to get the seat done. Than focus on the side panel, which I am thinking I will try to learn to fiberglass. Maybe not?

11) Wiring In and Actual Progress

Wiring Wiring Wiring Smoke?

I spent a lot of time trying to figure out how to wire the bike. Bought a wiring harness for the Harley Road Glide fairing and needed to merge it with the existing Honda harness. I found both the Harley and Honda wiring details online and purchased multiple weather resistant connectors to plug them together.

 I installed all the wiring including a new radio, ignition and tank mounted dash with all the indicators. It looked great and when I first turn it on everything was working.




Until I smell it and than saw it. Smoke! TURN IT OFF! TURN IT OFF!

So began the search for what was smoking, and why. It is usually easy to find the what. The key is to make sure you find all of the "Whats".  Than the important "Why", Because if you do not determine why it will happen again.

Began by removing tape from the bundle the smoke appeared to be coming from. Found one of the ground wires totally melted. I had to clear the entire bundle as the wire melted the adjacent wired.

Also found a totally blown 20 amp fuse. So the search resulted in finding that I was in to big of a hurry to power it up. I had a hot wire go to ground resulting in letting the magic smoke out.

Replaced the damaged wire, re-taped, and made sure everything was properly terminated. And again turned everything on and waited.

No Smoke!

So finally some real progress. Mounted all the relays, installed all the gauges (fuel level, temperature, voltmeter and a clock), mounting the rear fender, installing level sensor and fuel lines. Need to run plug wires and complete the wiring of the rear lights. Possibly in the next month put some gas in the tank and see if the bike restarts with the only smoke coming out of the exhaust.

10) Finally Some Progesss

The tank is headed for primer!

Finally the gas tank has progress past welding and rewelding, the main wiring has been reinstalled, I have figured out how to wire the Harley ignition and various indicators into the Honda harness, completed the fairing mounts and mounted the coils. I actually have made some progress once the gas tank issues are finally (hopefully) behind me.

 I believe in my previous blogs I outline how the gas tank would be the foundation of the look of the bike as well as how the tank was to be the biggest challenge. Well no matter how I framed the effort to modify the tank it was an understatement. I know the person I had do the modification was becoming frustrated with it as was I. But there was a level of expected evolution in the chasing of pin holes. So after the tank was at the fabricators for a couple extra weeks I went an got it and figured I would take on the challenge. I mean I have some skills, right?

What a mistake. Right away I noticed the tanks was pretty tight except for around the flange for the level sensor. No problem, pulled out the Oxy-Acetylene tanks and proceeded to make a mess.

Once I got my technique back, (it has been awhile) I was able to fill the holes I made and ran some nice beads around the flange and I was happy. Until I heard the first pop. With a closer look I could see the crack at the root of my brand new weld. No problem, fired up the torch again and ran another well placed and formed bead over the crack. This time there were two pops.

Ok, slow down, lets think about this. The flange is about 1/8 inch thick, the tank is maybe 18 gauge (or about 0.05 inches). As I try to remember back, hoop stress and thermal expansion may have something to do with this. So I welded up the new cracks and tried quick quenching which worked. Than I remembered how quenching will harden the steel making it more brittle. So I pulled out my rosebud (this is a very large Oxy-Ace torch tip) and carefully annealed the area around the flange to add some ductility back into the metal. This was working great until I heard it POP! Well now I am really getting a little frustrated.  Welded it up, quenched it and walked away.

The next day I installed the level sensor flange, pitcock and gas caps.  This was to allow filling the tank with water to make a final check for leaks and measure the flow rate through the pitcock. The first thing I noticed was the vented gas cap was working but not as well as I had hoped. I was only getting about 1 gallon in 8 minutes. Without the cap I could get 3 gallon in less than 4 minutes. So I made the decision to add a vent tube to the tank. More welding/brazing, but it did come out pretty good and works great.

During all the flow testing I noticed the level sensor flange had a slow leak. The best I could tell it was not leaking from the weld but by the gasket. After trying to tighten up the flange to seal the leak did not work a closer look revealed all the welding had warped the flange. So I did some initial grinding to try to flatten the surface and resorted to the magic of J-B Weld. Applied it as per the directions, sanded and lapped it flat and now I have a solid, flat and leak free flange.




I cleaned, etch and seal the internals of the tank with the Kreen tank sealing kit and covered all the welds with filler to give the tank a smooth finish. Once the filler is sanded and all surfaces are cleaned I will primer the tank and not look back (hopefully).

Next up is finish the air box, wire the fairing, mount the rear finder and about a million other things. Still having fun and may even finish this some day.

9) The Project is Home

Tank modification done so back to work, Maybe?

The project made it home on February 12th. I took the bike to the fabricator on November 14th, so it has taken about 3 months for the modification. I did not want to rush the fabricator so I was very patient. You may have been wondering what was I doing during all that time. Being retired I took care of the cats, went to the beach, but mostly I finally got around to rebuilding my motorcycle trailer.

 I finished rebuilding the trailer just in time to pickup the project from the fabricators. The trailer looks pretty good don't you think? And it is good to have the bike home too!



As I was hoping the tank went from a 4 gallon capacity to a 4 3/4 gallon. Below are the before and after picture.  We were able to add a port for a level indicator which looks like it should work well.

  I needed to clean and coat the inside of the tank, so I bought a kit from Kreem which includes a cleaner, etcher, and a coating. So I fill the tank to check the volume and start the cleaning when I noticed;

 So the tanks needs to go back to the fabricator for some touch ups. But I still have a lot of work to do on the bike.  I need to start final mounting of the air box, move the coils, modify the seat pan, hang the rear fender and mount the fairing. Well those and about 500 other things to figure out and stress on.

But I think it is going to come together with a little time and patients.
